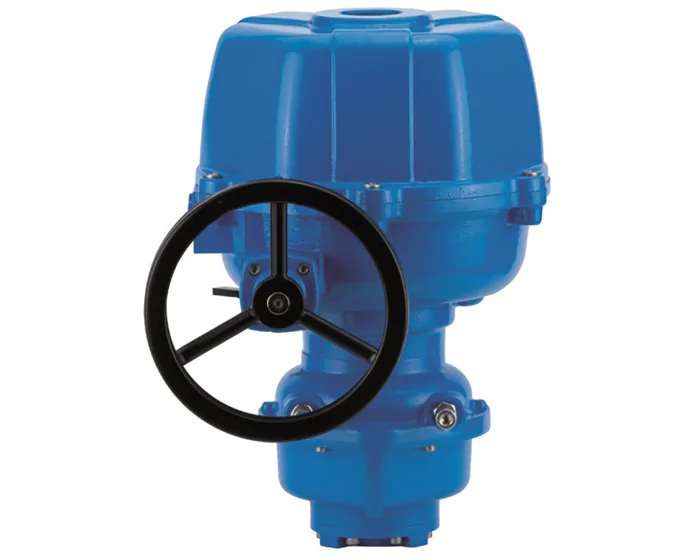

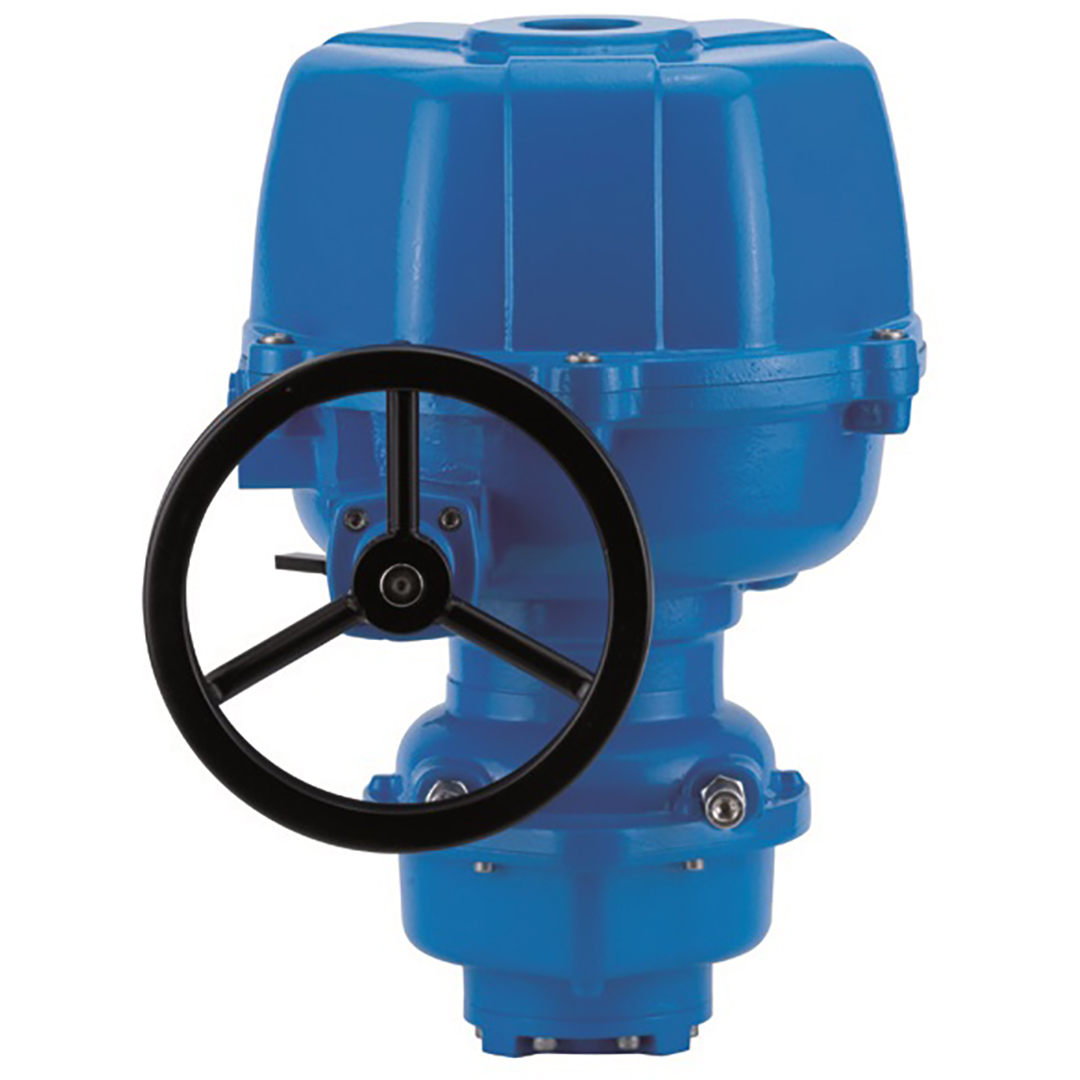

The ATEX electric actuator for 1/4 turn valve with spring return in safety position, from 50 to 300 Nm. Aluminium enclosure and cover with IP67 protection. Service S2 - 15 min. ATEX II 2G Ex d IIB T4 certification.
| Specification | Value |
|---|---|
| ATEX atmosphere | IIB |
| Square, star (mm) | 14 |
| Manual override | By handwheel |
| Torque (Nm) | 50 |
| Declutchable | Yes |
| Duty service | S4 duty service - 50% |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| ATEX protection mode | Ex d |
| ISO pad 5211 | F7 |
| Power (W) | 40 |
| Anti-condensation heater | Standard |
| Positive safety | Yes |
| Function | On-off |
| Electric actuator type | SRX-05 |
| Electric actuator series | SA-X/NA-X ATEX series |
| Spring return time (s) | 1 |
| Surface temperature | T4 |
| Voltage | 230 V AC |
| Positive safety type | Spring return |
| ATEX zone | 1. 2 |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| 50 | 023450 | S1005207 |
€3,814.80
(excl. btw)
|
add to cart |
| 100 | 023460 | S1005208 |
€4,281.96
(excl. btw)
|
add to cart |
| 300 | 023470 | S1005209 |
€7,468.03
(excl. btw)
|
add to cart |
